CFS3
Concrete Flood Light
High-performance precast concrete floodlight built for durability and longevity. ASTM-compliant and IP65-rated for outdoor protection. Features 120-277V operation, 0-10V dimming, and a 70,000-hour lifespan for reliable, long-term illumination. Designed for easy upgrades and component swaps, ensuring a permanent lighting solution that can adapt to future needs.
- Precast concrete construction for maximum durability
- ASTM standards compliant materials and construction
- Multiple mounting options for versatile installation
- Customizable concrete colors and finishes
- Optional weatherproof receptacle available
- Heavy-duty polycarbonate lens option for added protection
- IP65 Rated
- 120-277V operation, 0-10V dimmable
- 70,000-hour rated
- Designed for easy upgrades and component swaps to ensure long-term usability
- Standard lead time: 2-3 weeks
- Custom colors/finishes may require additional time
- Rush orders available upon request
- Shipping is not included. Please contact us for specific delivery costs/estimates.
Product Overview

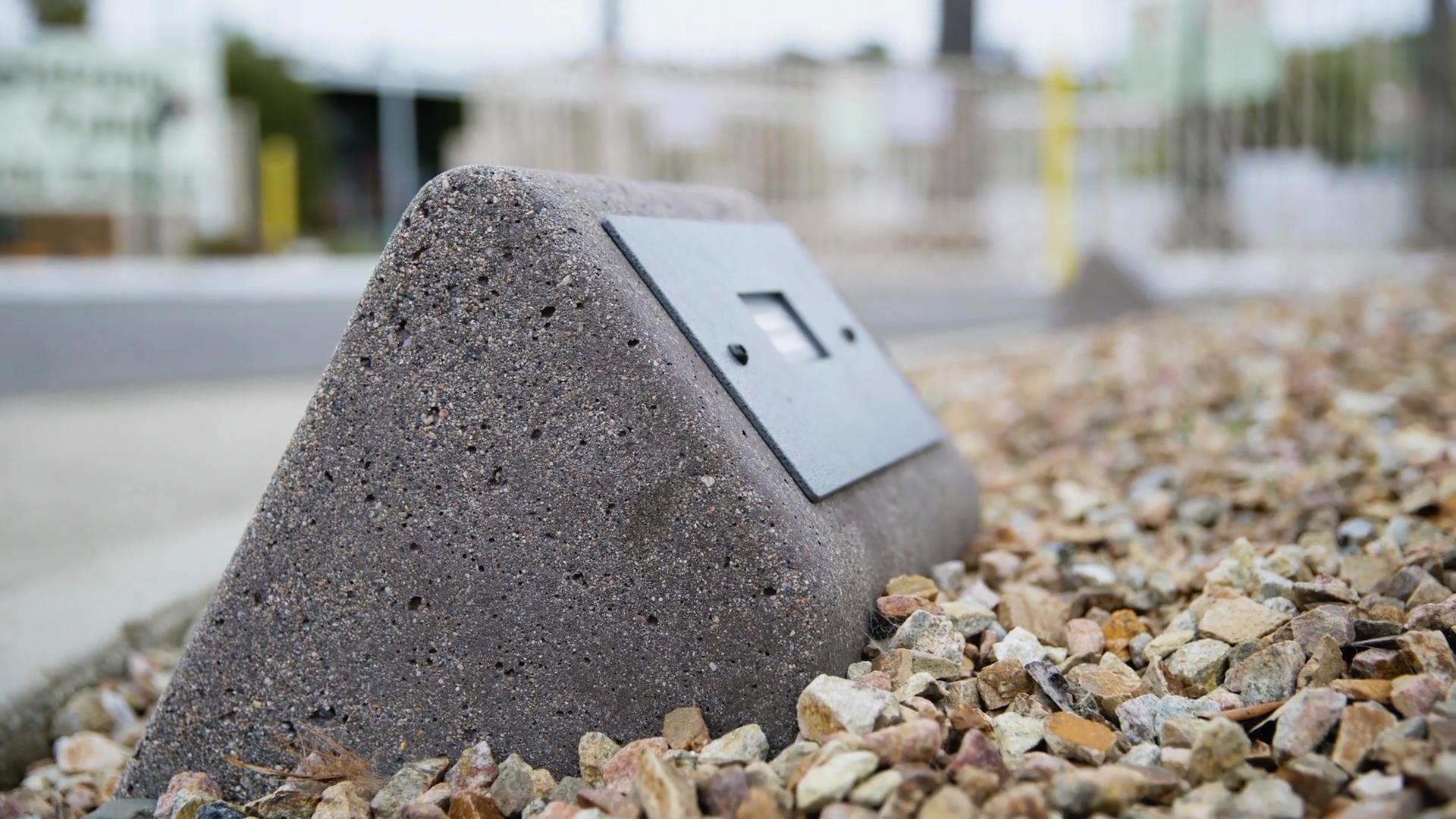

Unlike traditional metal or plastic fixtures that deteriorate over time, our CFS3 Concrete Floodlight is built to last forever. Made from durable precast concrete, it withstands impacts from maintenance equipment and daily wear. Perfect for illuminating signage, walkways, or upgrading existing lighting, it can be surface-mounted or direct-buried to suit your landscape design.
Product Features
Explore our versatile Concrete Flood Light featuring Natural, Buff, and Kailua colors with custom options available. Select from Mold Finish, Light Sandblast, or Exposed Aggregate finishes, plus optional Glaze & Seal protection. Adjustable mounting angles (35°, 55°, 75°) provide precise lighting control for any application.
Product Testimonial
Our CFS3 offers a "one and done" solution that saves money over time. With premium finishes and colors that complement any architecture, it adds lasting value to properties. While secure and durable, it remains adjustable for landscape changes. Experience why professionals choose LiteLines as their permanent lighting solution.
Frequently asked questions

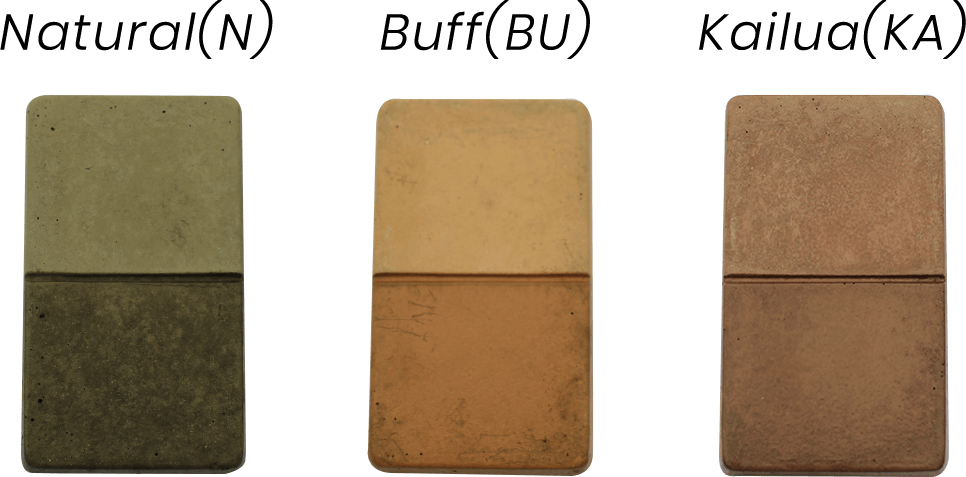

We offer a range of concrete colors to match your architectural style. Our standard colors include Natural (N), Buff (BU), and Kailua (KA). We also offer a Special color option for custom colors. Please contact us to discuss your color requirements.

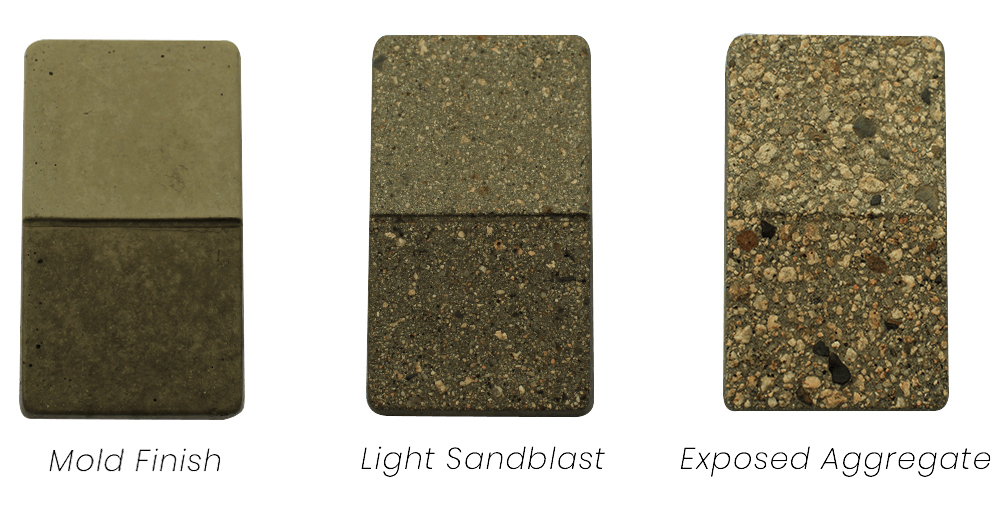

We offer three distinct finishes: Mold Finish (MF), Light Sandblast (LS), and Exposed Aggregate (EA). Each finish provides a unique aesthetic that can enhance your landscape design.

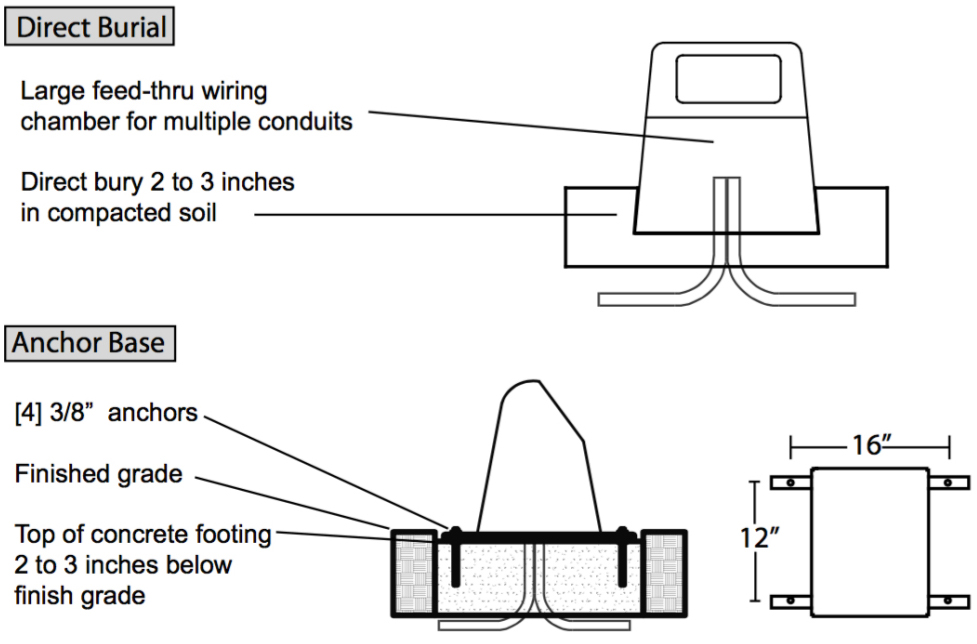

We offer two mounting options: Direct Burial (DB) and Anchor Base (AB). The Direct Burial option features a large feed-thru wiring chamber for multiple conduits and requires 2-3 inches burial in compacted soil. The Anchor Base option uses four 3/8" anchors and mounts on a concrete footing placed 2-3 inches below finish grade.
Electrical Specifications
- • Input Voltage: 120~277V AC/50~60 Hz
- • Wattage: 15W
- • Power Factor: >0.9
- • Dimming: 0~10V Dimmable
- • Efficacy: 130 LPW
Light Output
- • Total Lumens: 1950LM
- • Color Temperature: 3000K
- • Color Rendering Index: ≥82
- • Beam Angle: 120°× 90°
- • Optic Lens Type: III
Construction & Features
- • Die-cast Aluminum Housing with Powder Coat Finish
- • High Conductive Aluminum LED Board
- • Premium Philips Lumileds Luxeon 2835 High Flux LED
- • 90° Adjustable 1/2" Knuckle Mount
- • NEMA Twist-Lock Shorting Cap Included
Environmental & Safety
- • IP Rating: IP65
- • Operating Temperature: -40°F to 104°F
- • Suitable for Wet Locations
- • Maintenance-Free Solid State Technology
- • 13" #18 AWG Stranded Wire Connection
Installation of the CFS3 Concrete Flood Light follows industry-standard practices and can be completed by a qualified electrician or contractor. See our installation video guide below for detailed instructions.
Yes! Custom colors are available upon request. Pricing and lead times will vary based on your color choice and availability. Contact us for more details.
The CFS-3 weighs approximately 45 lbs.
Yes, the CFS series can be relocated within your landscape as long as you have access to a 120V power source.
Yes, we offer expedited processing. Contact us to discuss available options and timelines.
No, there are no minimum or maximum order requirements. However, pricing and lead times may vary based on the order size.
